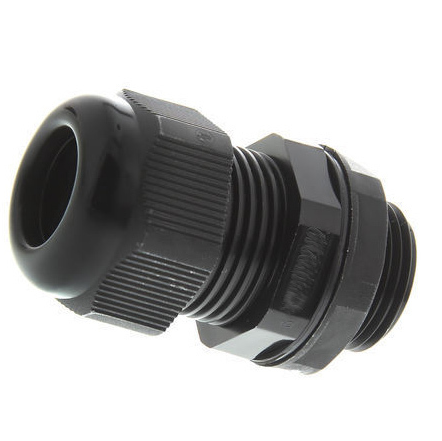

Paths : Home > Products > Cable Accessories > Cable Glands > NPT Cable Gland
Material : Nylon PA, UL94-V0
Seal: NBR
Protection Class: IP68 (O-ring)
Temperature range: Static state:-40℃ to 100℃,short term to 120℃.
Dynamic state: -20℃ to 80℃, short term to 100℃.
Color: Gray RAL7035; Black RAL9005 (Color can be customized)
| Thread | Cable Range | Thread length mm | H mm | Spanner size mm | Outer diameter mm |
| NPT3/8" | 4-8 | 15 | 26 | 19 | 17 |
| NPT3/8" | 2-6 | 15 | 26 | 19 | 17 |
| NPT1/2" | 6-12 | 13 | 30 | 24 | 21.2 |
| NPT1/2" | 5-9 | 13 | 30 | 24 | 21.2 |
| NPT3/4" | 13-18 | 15 | 37 | 33 | 26.2 |
| NPT3/4" | 9-16 | 15 | 37 | 33 | 26.2 |
| NPT1" | 18-25 | 16 | 40 | 41 | 33.3 |
| NPT1" | 13-20 | 16 | 40 | 41 | 33.3 |
| NPT11/4" | 18-25 | 18 | 40 | 42/46 | 42 |
| NPT11/4" | 13-20 | 18 | 40 | 42/46 | 42 |
| NPT11/2" | 22-32 | 15 | 48 | 52/53 | 48 |
| NPT11/2" | 20-26 | 15 | 48 | 52/53 | 48 |
