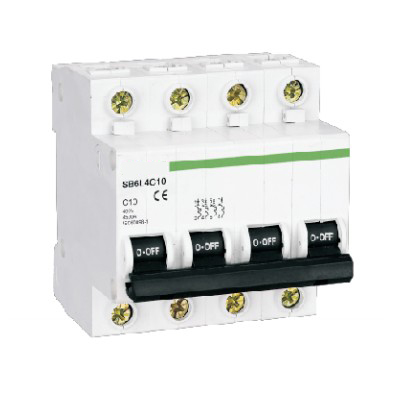

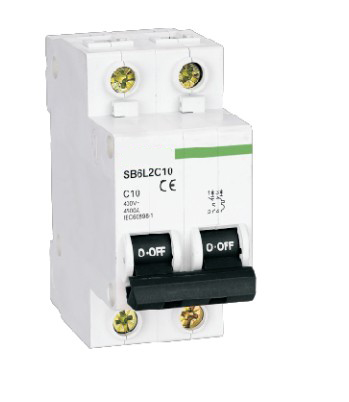

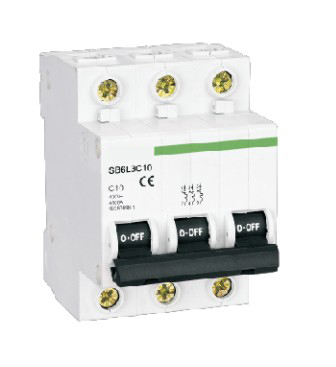

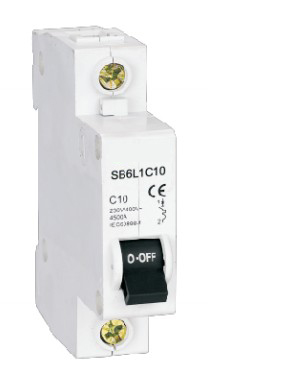

SB6 18mm Miniature Circuit Breaker
Standared:IEC6089-1
Certification:CE,ROHS.
Poles:1-4P
Rated Current In:1,3,6,10,16,20,25,32,40,50,63A.
Rated Voltage Ue:230/400V AC
Insulation Voltage UI:500V
Breaking Capacity Icn
| Rated current(A) | Breaking capacity Icn(ka) | Type | Poles | Voltage(V) |
| 1-63 | 3 | B,C,D | 1P,2P,3P,4P | 230/400 400 |
| 1-63 | 4.5 | B,C,D | 1P,2P,3P,4P | 230/400 400 |
| 1-40 | 6 | B,C | 1P,2P,3P,4P | 230/400 400 |
Tripping Curve (See following tripping curve pictures)
B Curve:the magnetic release operates between 3 and 5 In
C Curve: the magnetic release operates between 5 and 10 In
D Curve: the magnetic release operates between 10 and 14 In
Mechanical Features
Electrical Durability 4000times
Mechanical Durability 10000times
Protection Degree 2
Tropicalization treatment 2
Ambient Temperature -50°C ~ +40°C
Connection :Up to 25mm² cables
Installation
Rated: 1-63(A)
Screw: M5
Rate Torque: 2.5(Nm)
Limiting Torque: 4.5(Nm)
Mounting:35mm Din-rail
