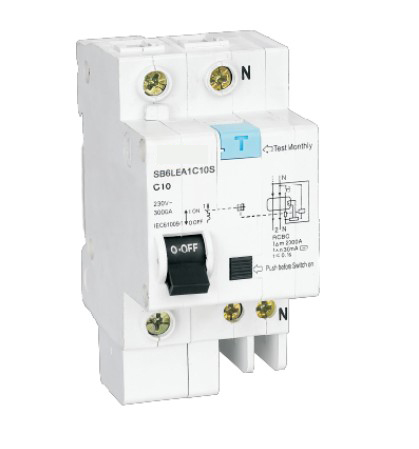

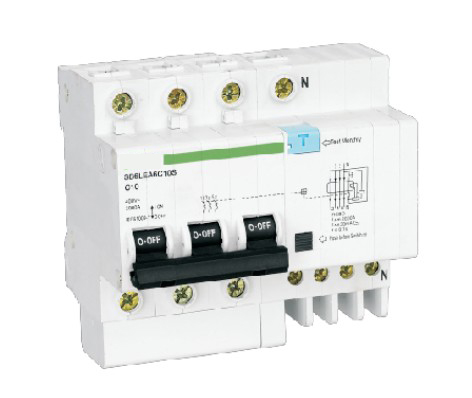

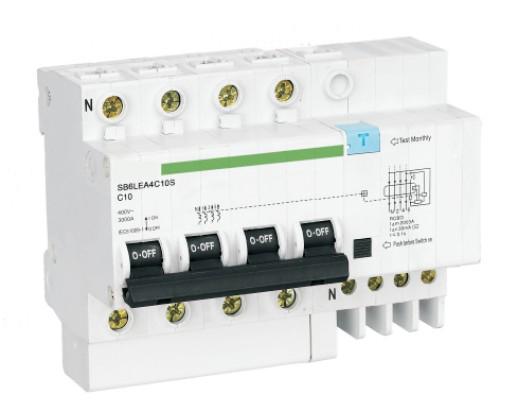

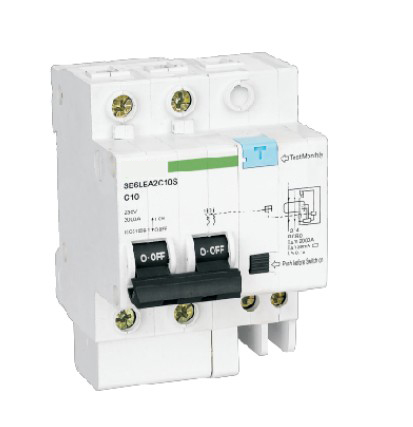

Residual Current Device

1.Standard:IEC 61009-1

2.Electronic type:AC

3.Breaking capacity:3000A

4.Sensitivity:30,50,100,200,300mA.

SB6LE electronic type residual current operated circuit breaker combine the flowing functions:

• Overload protection

• Protection against short-circuit currents

• Protecion for user againstindirect currents.

• Additional protection for users against direct contacts(30mA)

• Protection for electrical installations against insulation faults(fire hazard,etc)

• Isolation
