Terminal block

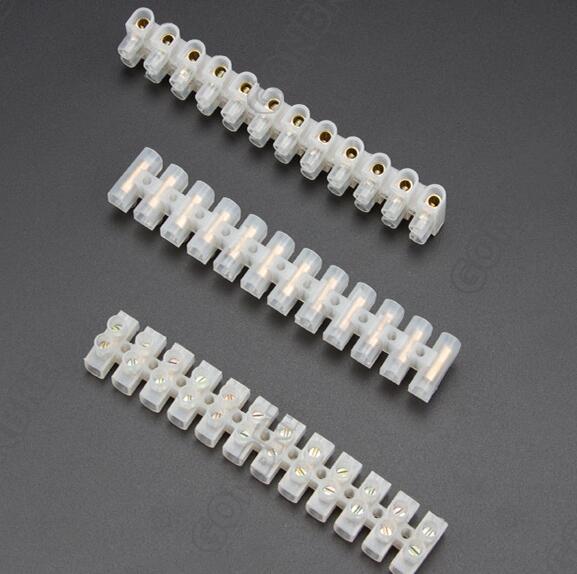

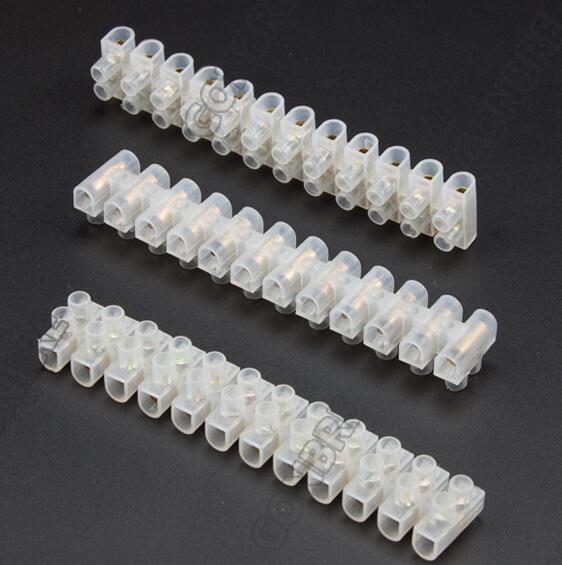

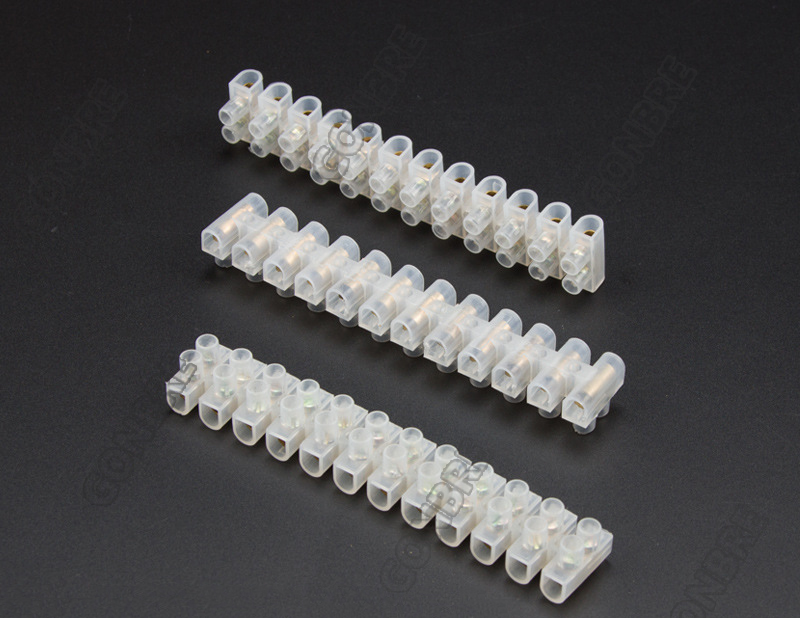

THRMINAL BLOCKS H、U(W)、V(F)TYPE
Material:made from PA,PE or PP

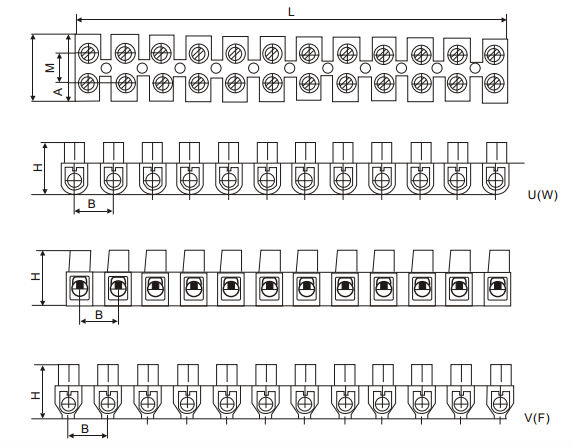

U-TYPE
| 编号 | L | W | H | A | B | mm2 | VOLT | AMP | Packing |
| TBS-3A | 90.3 | 15.5 | 11.5 | 6 | 7.7 | 4 | 400V | 3A | 10PCS |
| TBS-6A | 110.5 | 15.5 | 12.4 | 6.5 | 9.5 | 6 | 400V | 6A | |
| TBS-10A | 116.7 | 20 | 14.9 | 8 | 10 | 10 | 400V | 10A | |
| TBS-16A | 136.8 | 21.5 | 16.7 | 10 | 11.7 | 12 | 400V | 16A | |
| TBS-20A | 153.5 | 24.5 | 17.4 | 11.5 | 13.2 | 14 | 400V | 20A | |
| TBS-30A | 165 | 25 | 20 | 12 | 14.1 | 16 | 400V | 30A | |
| TBS-60A | 187.6 | 29 | 23.5 | 12 | 16 | 25 | 400V | 60A | |
| TBS-80A | 205 | 33 | 27 | 15 | 17 | 35 | 400V | 80A | |
| TBS-100A | 250 | 46 | 31 | 22 | 21 | 40 | 400V | 100A |

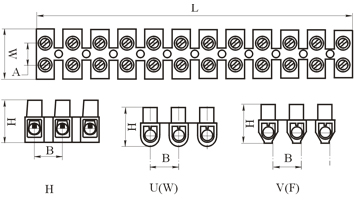

H-TYPE
| 编号 ITEM.NO. | L | W | H | A | B | mm2 | VOLT | AMP | PACKING |
| TBS-3A | 90.8 | 15.5 | 12 | 6 | 7.8 | 4 | 400V | 3A | 10PCS |
| TBS-6A | 111.4 | 15.5 | 13.5 | 6.5 | 9.6 | 6 | 400V | 6A | |
| TBS-10A | 116.4 | 20 | 15.3 | 8 | 10 | 10 | 400V | 10A | |
| TBS-16A | 133.8 | 22.7 | 16 | 10 | 11.5 | 12 | 400V | 16A | |
| TBS-30A | 162 | 25 | 19.3 | 12 | 13.9 | 14 | 400V | 30A | |
| TBS-60A | 184.6 | 28.6 | 23 | 12 | 15.8 | 16 | 400V | 60A |
