| Imax = 19A Material:Copper Thickness of material:0.75mm | ||||||||

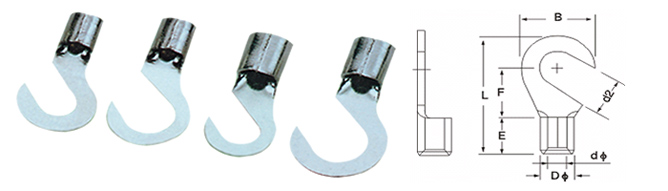

| ITEMNO | BoltDimension d2(mm) | Dimension (mm) | Section of lead(mm²) | |||||
| B | F | L | E | DΦ | dΦ | |||
| HNB 1.25 - 3.5 | 3.7 | 8 | 7 | 15.8 | 4.8 | 3.4 | 1.7 | 22 - 16 A.W.G 0.5 - 1.5 mm² |
| HNB 1.25 - 4 | 4.3 | |||||||
| HNB 1.25 - 5 | 5.3 | |||||||
| HNB 1.25 - 6 | 6.4 | 11.6 | 11 | 21.8 | ||||
| Imax = 27A Material:Copper Thickness of material:0.8mm | ||||||||
| ITEMNO | BoltDimension d2(mm) | Dimension (mm) | Section of lead(mm²) | |||||
| B | F | L | E | DΦ | dΦ | |||
| HNB 2 - 3.5 | 3.7 | 8.5 | 7.8 | 16.8 | 4.8 | 4.1 | 2.3 | 16 - 14 A.W.G 1.5 - 2.5 mm² |
| HNB 2 - 4 | 4.3 | |||||||
| HNB 2 - 5 | 5.3 | 8.1 | 7.3 | |||||
| HNB 2 - 6 | 6.4 | 9.5 | 11 | 21.8 | ||||
| Imax = 48A Material:Copper Thickness of material:1.0mm | ||||||||
| ITEMNO | BoltDimension d2(mm) | Dimension (mm) | Section of lead(mm²) | |||||
| B | F | L | E | DΦ | dΦ | |||
| HNB 5.5 - 3.5 | 3.7 | 7.2 | 6.1 | 15.7 | 6 | 5.6 | 3.4 | 12 - 10 A.W.G 4 - 6 mm² |
| HNB 5.5 - 4 | 4.3 | 9.5 | 9.5 | 19.8 | ||||
| HNB 5.5 - 5 | 5.3 | |||||||
| HNB 5.5 - 6 | 6.4 | 12 | 10.3 | 22.5 | ||||
| HNB 5.5 - 8 | 8.4 | 15 | 13.5 | 27 | ||||
| Imax = 62A Material:Copper Thickness of material:1.2mm | ||||||||
| ITEMNO | BoltDimension d2(mm) | Dimension (mm) | Section of lead(mm²) | |||||
| B | F | L | E | DΦ | dΦ | |||
| HNB 8 - 8 | 8.4 | 15 | 13.8 | 29.5 | 8.5 | 7.2 | 4.5 | 8A.W.G 8mm² |
