Paths : Home > Products > Photovoltaic Electric > DC Isolated Switch

NL1 series DC isolator switch is applied to 1~20KW residential or commercial photovoltaic system,

placed between photovoltage modules and inverters. Arcing time is less than 8ms, which keeps

solar system more safe. To ensure its stability and long service life, our products are made by

components with optimum quality. Max voltage is up to 1200VDC. It holds a safe lead among

similar products.


Feature

a. IP20 protection level

b. Din rail mounted

c. Switch body for 4P CB4N or CB8N

d. 2 poles, 4 poles are viable

e. DC-PV2, DC-PV1, DC-21B

f. 16A, 25A, 32A, 1200VDC

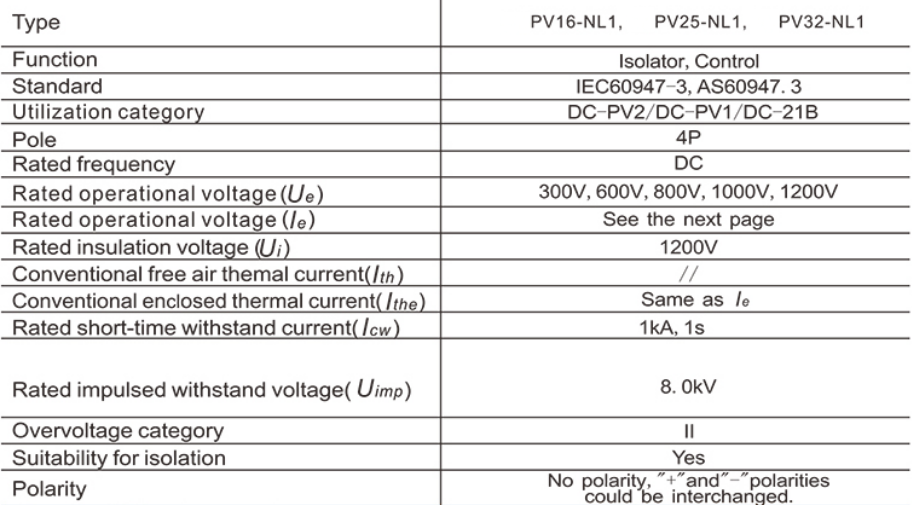

DC ISOLATED SWITCH PARAMETER.png
