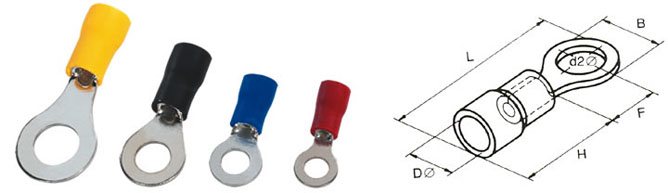

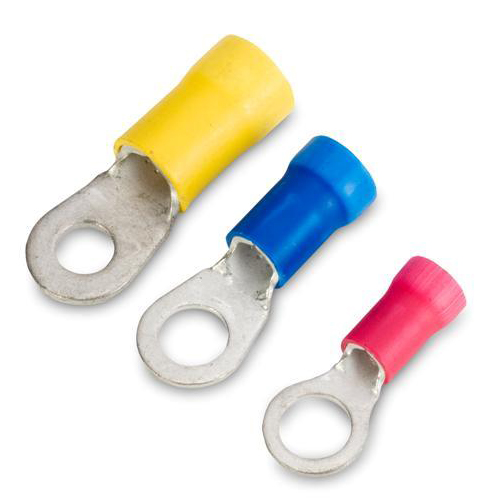

Summary Parameter

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 19A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
RV1.25 - 3	#4	3.2mm	5.7	17.8	4.95	10	4.3	red
RVS1.25 - 3.5	#6	3.7mm	5.7	17.8	4.95
RVM1.25 - 3.5	#6	3.7mm	6.6	20.1	6.3
RVL1.25 - 3.5	#6	3.7mm	8	21.5	7
RVS1.25 - 4	#8	4.3mm	6.6	20.1	6.3
RVL1.25 - 4	#8	4.3mm	8	21.5	7
RV1.25 - 5	#10	5.3mm	8	21.5	7
RV1.25 - 6	1/4	6.5mm	11.6	27.5	11.1
RV1.25 - 8	5/16	8.4mm	11.6	27.5	11.1
RV1.25 - 10	3/8	10.5mm	13.6	31.6	13.9

Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14) Imax = 27A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
RV2 - 3	#4	3.2mm	6.6	17.8	4.3	10	4.9	blue
RVS2 - 3.5	#6	3.7mm	6.6	17.8	4.3
RVM2 - 3.5	#6	3.7mm	6.6	21	7
RVL2 - 3.5	#6	3.7mm	8.5	22.5	7.75
RVS2 - 4	#8	4.3mm	6.6	21	7
RVL2 - 4	#8	4.3mm	8.5	22.5	7.75
RVS2 - 5	#10	5.3mm	8.5	22.5	7.75
RVL2 - 5	#10	5.3mm	9.5	22.5	7.25
RV2 - 6	1/4	6.5mm	12	27.6	11
RV2 - 8	5/16	8.4mm	12	27.6	11
RV2 - 10	3/8	10.5mm	13.6	30.2	13.9

Section of lead:2.5 - 4 mm² (USA Spec 14 - 12) Imax = 37A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
RV3.5 - 4	#8	4.3mm	8	24.5	7.7	12.5	6.2	black
RVS3.5 - 5	#10	5.3mm	8	24.5	7.7
RVL3.5 - 5	#10	5.3mm	12	27.9	7.7
RV3.5 - 6	1/4	6.5mm	12	27.9	7.7

Section of lead:4 - 6 mm² (USA Spec 12 - 10) Imax = 48A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
RV5.5 - 3.5	#6	3.7mm	7.2	21.4	5.9	12.5	6.7	yellow
RVS5.5 - 4	#8	4.3mm	7.2	21.4	5.9
RVL5.5 - 4	#8	4.3mm	9.5	25.5	8.3
RV5.5 - 5	#10	5.3mm	9.5	25.5	8.3
RV5.5 - 6	1/4	6.5mm	12	31.5	13
RV5.5 - 8	5/16	8.4mm	15	33.7	13.7
RV5.5 - 10	3/8	10.5mm	15	33.7	13.7
RV5.5 - 12	1/2	13.0mm	19.2	38.1	16
