Insulated Terminals

Paths : Home > Products > Terminals > Insulated Terminals > Non-Insulated Ring Terminals(TO type)

Summary Parameter

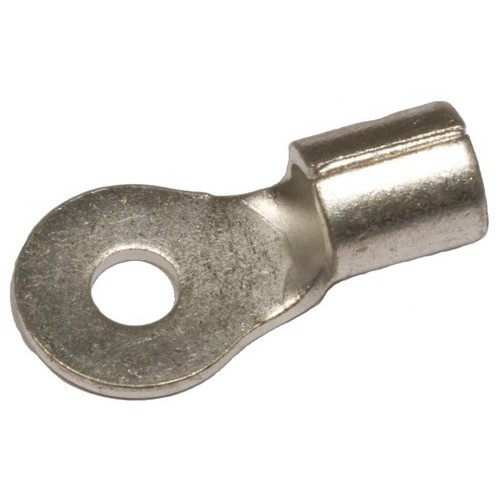

non-insulated-ring-terminals-gonbre (2).jpg

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 19A
ITEMNO	Dimension （mm)
ITEMNO	USABOLTNO	BOLT dia. d2Φ	B	L	F	H	DΦ	dΦ
RNB1.25 - 3	#4	3.2mm	5.7	12.6	4.95	4.8	3.4	1.7
RNBS1.25 - 3.5	#6	3.7mm	5.7	12.6	4.95
RNBM1.25 - 3.5	#6	3.7mm	6.6	14.4	6.3
RNBL1.25 - 3.5	#6	3.7mm	8	15.8	7
RNBS1.25 - 4	#8	4.3mm	6.6	14.4	6.3
RNBL1.25 - 4	#8	4.3mm	8	15.8	7
RNB1.25 - 5	#10	5.3mm	8	15.8	7
RNB1.25 - 6	1/4	6.5mm	11.6	21.8	11.1
RNB1.25 - 8	5/16	8.4mm	11.6	21.8	11.1
RNB1.25 - 10	3/8	10.5mm	13.6	25.5	13.9

Section of lead1.5 - 2.5 mm² (USA Spec 16 - 14) Imax = 27A
ITEMNO	Dimension (mm)
ITEMNO	USABOLTNO	BOLT dia. d2Φ	B	L	F	H	DΦ	dΦ
RNB2 - 3	#4	3.2mm	6.6	12.3	4.3	4.8	4.1	2.3
RNBS2 - 3.5	#6	3.7mm	6.6	12.3	4.3
RNBM2 - 3.5	#6	3.7mm	6.6	16	7
RNBL2 - 3.5	#6	3.7mm	8.5	16.8	7.75
RNBS2 - 4	#8	4.3mm	6.6	16	7
RNBL2 - 4	#8	4.3mm	8.5	16.8	7.75
RNBS2 - 5	#10	5.3mm	8.5	16.8	7.75
RNBL2 - 5	#10	5.3mm	9.5	16.8	7.25
RNB2 - 6	1/4	6.5mm	12	21.8	11
RNB2 - 8	5/16	8.4mm	12	21.8	11
RNB2 - 10	3/8	10.5mm	13.6	25.5	13.9

Section of lead:2.5 - 4 mm² (USA Spec 14 - 12) Imax = 37A
ITEMNO	Dimension (mm)
ITEMNO	USABOLTNO	BOLT dia. d2Φ	B	L	F	H	DΦ	dΦ
RNB3.5 - 4	#8	4.3mm	8	18	7.7	6	5	3
RNBS3.5 - 5	#10	5.3mm	8	18	7.7
RNBL3.5 - 5	#10	5.3mm	12	21.4	7.7
RNB3.5 - 6	1/4	6.5mm	12	21.4	7.7

Section of lead:4 - 6 mm² (USA Spec 12 - 10) Imax = 48A
ITEMNO	Dimension (mm)
ITEMNO	USABOLTNO	BOLT dia. d2Φ	B	L	F	H	DΦ	dΦ
RNB5.5 - 3.5	#6	3.7mm	7.2	15.7	5.9	6.8	5.6	3.4
RNBS5.5 - 4	#8	4.3mm	7.2	15.7	5.9
RNBL5.5 - 4	#8	4.3mm	9.5	19.8	8.3
RNB5.5 - 5	#10	5.3mm	9.5	19.8	8.3
RNB5.5 - 6	1/4	6.5mm	12	25.8	13
RNB5.5 - 8	5/16	8.4mm	15	28	13.7
RNB5.5 - 10	3/8	10.5mm	15	28	13.7
RNB5.5 - 12	1/2	13.0mm	19.2	32.4	16
