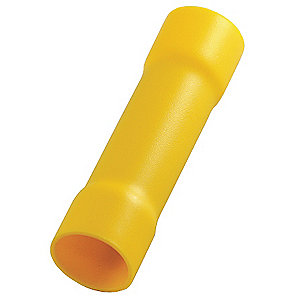

Paths : Home > Products > Terminals > Insulated Terminals > Long full insulation middle joint(TL-JTK type)

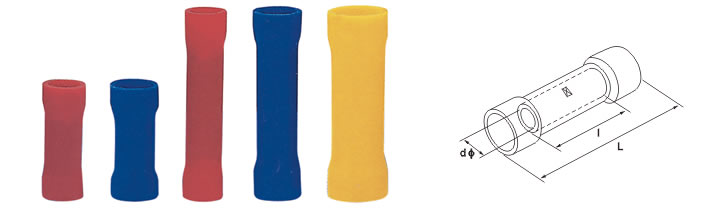

| Material:Copper Insulating Material:PVC | |||||||
| ITEMNO | Section of lead | Dimension (mm) | Max current | Color | |||
| A.W.G | mm | l | dΦ | L | |||
| BV 1.25 | 22 - 16 | 0.5 - 1.5 | 15 | 1.7 | 26 | 19A | red |
| BV 2 | 16 - 14 | 1.5 - 2.5 | 15 | 2.3 | 26 | 27A | blue |
| BV 5.5 | 12 - 10 | 4 - 6 | 15 | 3.4 | 26 | 48A | yellow |
| BV 8 | #8 | 6 - 10 | 21 | 4.5 | 32 | 62A | red |
| BV 14 | #6 | 10 - 16 | 26 | 5.8 | 42 | 88A | blue |
| BV 22 | #4 | 16 - 25 | 29 | 7.7 | 50 | 115A | yellow |
| BV 38 | @2 | 35 - 50 | 32 | 9.4 | 55 | 160A | red |
