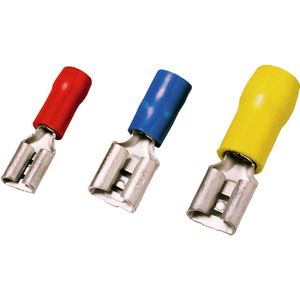

Paths : Home > Products > Terminals > Insulated Terminals > Insulated Female Disconnects Terminal
| Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A | |||||||

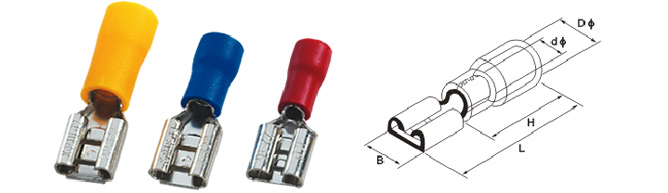

| ITEMNO | NEMATAB | Thickness | Dimension | ||||
| B | dΦ | DΦ | L | H | |||
| mm | mm | mm | mm | mm | mm | mm | |
| FDD 1.25-110（5） | 0.5*2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19 | 10 |
| FDD 1.25-110（8） | 0.8*2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19 | |
| FDD 1.25-187（5） | 0.5*4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19 | |
| FDD 1.25-187(8) | 0.8*4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19 | |
| FDD 1.25-205 | 0.5*5.2 | 0.35 | 6.5 | 1.7 | 3.8 | 20 | |
| FDD 1.25-250 | 0.8*6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21 | |
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A | |||||||
| ITEMNO | NEMATAB | Thickness | Dimension | ||||
| B | dΦ | DΦ | L | H | |||
| mm | mm | mm | mm | mm | mm | mm | |
| FDD 1.25-110（5） | 0.5*2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19 | 10 |
| FDD 1.25-110（8） | 0.8*2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19 | |
| FDD 1.25-187（5） | 0.5*4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19 | |
| FDD 1.25-187(8) | 0.8*4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19 | |
| FDD 1.25-205 | 0.5*5.2 | 0.35 | 6.5 | 2.3 | 4.3 | 20 | |
| FDD 1.25-250 | 0.8*6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21 | |
| FDD 1.25-312 | 0.8*8.0 | 0.4 | 9 | 2.3 | 4.3 | 23 | |
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A | |||||||
| ITEMNO | NEMATAB | Thickness | Dimension | ||||
| B | dΦ | DΦ | L | H | |||
| mm | mm | mm | mm | mm | mm | mm | |
| FDD 5.5-187 | 0.5*4.75 | 0.4 | 5.6 | 3.4 | 5.7 | 23 | 14 |
| FDD 5.5-250 | 0.5*6.35 | 0.4 | 7.4 | 3.4 | 5.7 | 25 | |
| FDD 5.5-312 | 0.8*8.0 | 0.5 | 9 | 3.4 | 5.7 | 27 | |
| FDD 5.5-375 | 0.8*9.4 | 0.5 | 10.9 | 3.4 | 5.7 | 29.6 | |
