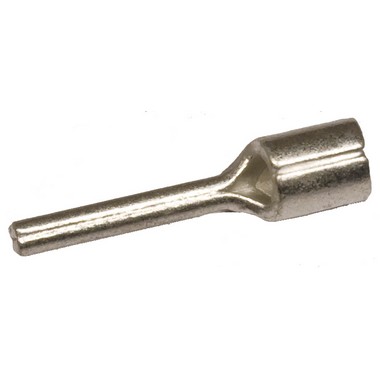

Paths : Home > Products > Terminals > Insulated Terminals > Non-Insulated Pin Terminal(TZ type)
| Section of lead:0.5 - 1.5 mm²(USA Spec 22 - 16 ) Imax = 19A | |||||

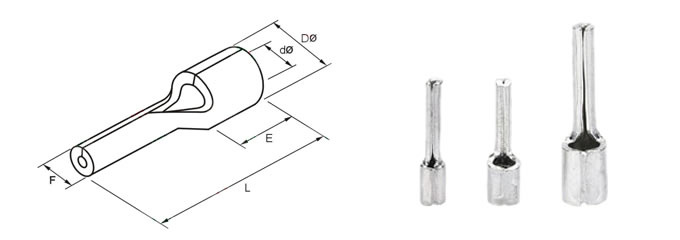

| ITEMNO | Dimension (mm) | ||||
| F | L | E | DΦ | dΦ | |
| PTN 1.25 - 9 | 1.9 | 13.8 | 4.8 | 3.4 | 1.7 |
| PTN 1.25 - 10 | 1.9 | 14.8 | |||
| PTN 1.25 - 12 | 1.9 | 16.8 | |||
| PTN 1.25 - 13 | 1.9 | 17.8 | |||
| PTN 1.25 - 18 | 1.9 | 22.8 | |||
| Section of lead:1.5 - 2.5 mm²(USA Spec 16 - 14 ) Imax = 27A | |||||
| ITEMNO | Dimension (mm) | ||||
| F | L | E | DΦ | dΦ | |
| PTN 2 - 9 | 1.9 | 13.8 | 4.8 | 4.1 | 2.3 |
| PTN 2 - 10 | 1.9 | 14.8 | |||
| PTN 2 - 12 | 1.9 | 16.8 | |||
| PTN 2 - 13 | 1.9 | 17.8 | |||
| PTN 2 - 18 | 1.9 | 22.8 | |||
| Section of lead:4 - 6 mm²(USA Spec 12 - 10 ) Imax = 48A | |||||
| ITEMNO | Dimension (mm) | ||||
| F | L | E | DΦ | dΦ | |
| PTN 5.5 - 13 | 2.8 | 19.8 | 6.8 | 5.6 | 3.4 |
