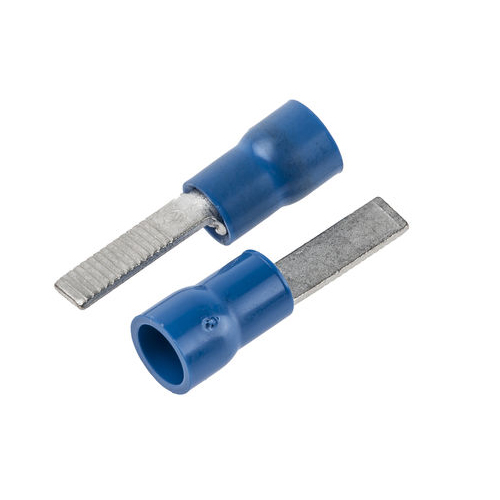

Paths : Home > Products > Terminals > Insulated Terminals > Insulated Blade Terminals
| Section of lead:0.5 - 1.5mm² (USA Spec 22 - 16 ) Imax = 19A Material:Copper Thickness of material:0.75mm | ||||||
| ITEMNO | Dimension | Color | ||||

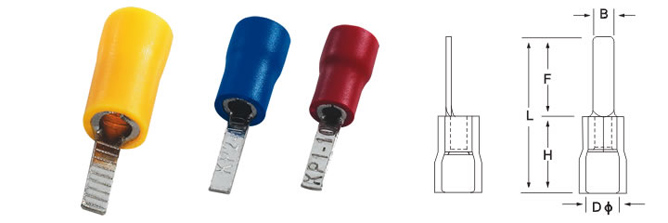

| B | L | F | H | DΦ | ||
| DBV 1.25 - 10 | 2.3 | 20 | 10 | 10 | 4.3 | red |
| DBV 1.25 - 11 | 3 | 21 | 11 | |||
| DBV 1.25 - 14 | 3 | 24 | 14 | |||
| DBV 1.25 - 18 | 2.3 | 28 | 18 | |||
| Section of lead:1.5 - 2.5mm² (USA Spec 16 - 14 ) Imax = 27A Material:Copper Thickness of material:0.8mm | ||||||
| ITEMNO | Dimension | Color | ||||
| B | L | F | H | DΦ | ||
| DBV 2 - 10 | 2.4 | 19 | 9 | 10 | 4.9 | blue |
| DBV 2 - 14 | 2.4 | 24 | 14 | |||
| DBV 2 - 18 | 2.4 | 28 | 18 | |||
| Section of lead:4 - 6mm² (USA Spec 12 - 10 ) Imax = 48A Material:Copper Thickness of material:1.0mm | ||||||
| ITEMNO | Dimension | Color | ||||
| B | L | F | H | DΦ | ||
| DBV 5.5 - 10 | 2.8 | 22.5 | 10 | 13 | 5.6 | yellow |
| DBV 5.5 - 14 | 4.5 | 26.5 | 14 | |||
| DBV 5.5 - 18 | 4.5 | 30.5 | 18 | |||
