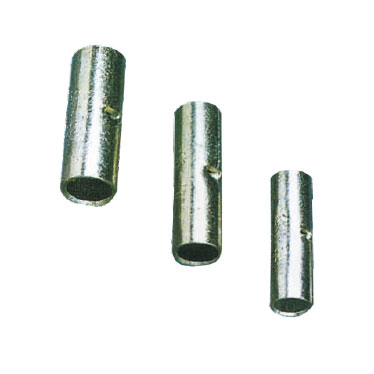

Paths : Home > Products > Terminals > Insulated Terminals > Middle bare joint(TL type)
| Material:Copper | |||||

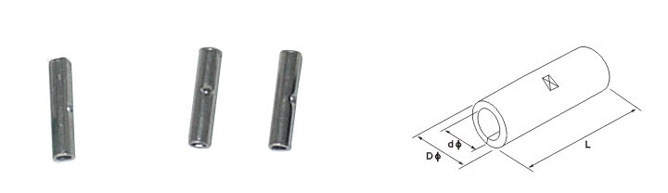

| ITEMNO | Dimension | Section of lead | |||
| dΦ | DΦ | l | A.W.G | mm² | |
| BN 1.25 | 1.7 | 3.3 | 15 | 22 - 28 | 0.5 - 1.0 |
| BN 2 | 2.3 | 4 | 15 | 16 - 14 | 1.5 - 2.5 |
| BN 3.5 | 3 | 5 | 15 | 14-12 | 2.5 - 4 |
| BN 5.5 | 3.4 | 5.5 | 15 | 12-10 | 4-6 |
| BN 8 | 4.5 | 7.1 | 21 | #8 | 10 |
| BN 14 | 5.8 | 9 | 26 | #6 | 16 |
| BN 22 | 7.7 | 11.4 | 29 | #4 | 25 |
| BN 38 | 9.4 | 13.3 | 32 | #2 | 35 |
| BN 60 | 11.4 | 15.4 | 36 | 1/0 | 50 |
| BN 70 | 13.3 | 17.5 | 37 | 2/0 | 70 |
| BN 80 | 14.5 | 19.4 | 38 | 3/0 | 95 |
| BN 100 | 16.4 | 22 | 38 | 4/0 | 120 |
| BN 150 | 19.5 | 26.5 | 54 | 250 - 300 MCM | 150 |
| BN 180 | 21 | 28.5 | 57 | 300 - 350 MCM | 185 |
| BN 200 | 24 | 32.5 | 63 | 400 MCM | 240 |
| BN 325 | 28 | 37 | 72 | 500 - 600 MCM | 300 |
