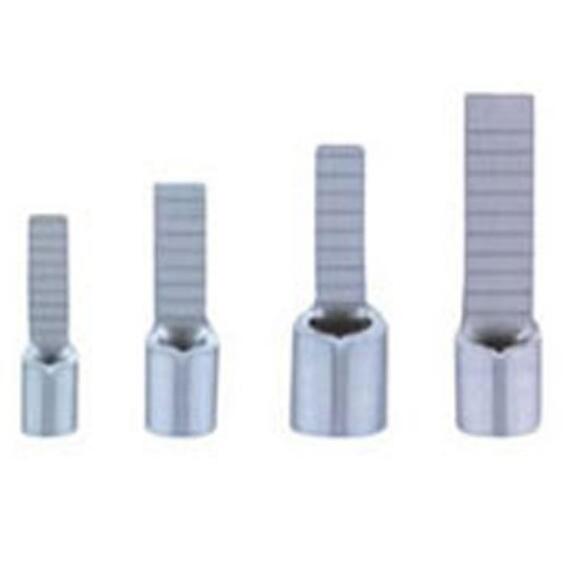

Paths : Home > Products > Terminals > Insulated Terminals > Non-Insulated Blade Terminals
| Section of lead:0.5 - 1.5mm² (USA Spec 22 - 16 ) Imax 19A Material:Copper Thickness of material:0.75mm | ||||||

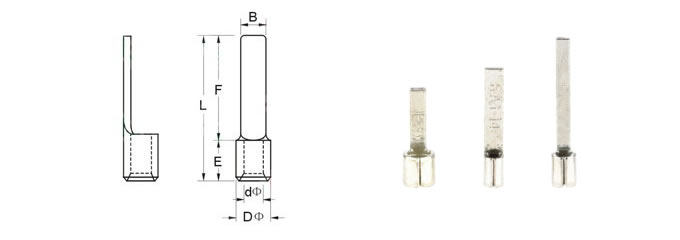

| ITEMNO | Dimension | |||||
| B | L | F | E | DΦ | dΦ | |
| DBN 1.25 - 10 | 2.3 | 14.8 | 10 | 4.8 | 3.4 | 1.7 |
| DBN 1.25 - 11 | 3 | 15.8 | 11 | |||
| DBN 1.25 - 14 | 3 | 18.8 | 14 | |||
| DBN 1.25 - 18 | 2.3 | 22.8 | 18 | |||
| Section of lead:1.5 - 2.5mm² (USA Spec 16 - 14 ) Imax = 27A Material:Copper Thickness of material:0.8mm | ||||||
| ITEMNO | Dimension | |||||
| B | L | F | H | DΦ | dΦ | |
| DBN 2 - 9 | 2.8 | 13.8 | 9 | 4.8 | 4.1 | 2.3 |
| DBN 2 - 18 | 2.3 | 22.8 | 18 | |||
| Section of lead:4 - 6mm² (USA Spec 12 - 10 ) Imax = 48A Material:Copper Thickness of material:1.0mm | ||||||
| ITEMNO | Dimension | |||||
| B | L | F | H | DΦ | dΦ | |
| DBN 5.5 - 10 | 2.8 | 14.8 | 10 | 6 | 5.6 | 3.4 |
| DBN 5.5 - 14 | 4.5 | 21 | 14 | |||
| DBN 5.5 - 18 | 4.5 | 23 | 18 | |||
| DBN 8 - 14 | 5 | 22.5 | 14 | 8.5 | 7.2 | 4.5 |
| DBN 14 - 16 | 6 | 30.6 | 16 | 14 | 9 | 6.5 |
