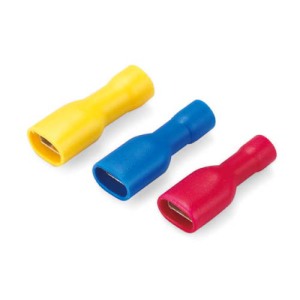

Paths : Home > Products > Terminals > Insulated Terminals > Female Full-Insulating Joint
| Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A | ||||||

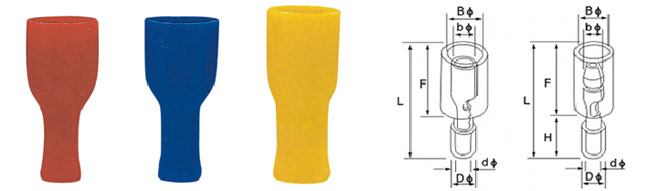

| ITEMNO | NEMATAB | Dimension | ||||
| W | B | DΦ | dΦ | L | ||
| mm | mm | mm | mm | mm | mm | |
| FDFD 1.25-110（5） | 0.5*2.8 | 6.2 | 3.2 | 4 | 1.7 | 20 |
| FDFD 1.25-187（5） | 0.5*4.75 | 7.8 | 5 | 4 | 1.7 | 20 |
| FDFD 1.25-187（8） | 0.8*4.75 | 7.8 | 5 | 4 | 1.7 | 20 |
| FDFD 1.25-250 | 0.8*6.3 | 9.3 | 6.6 | 4 | 1.7 | 22.5 |
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A | ||||||
| ITEMNO | NEMATAB | Dimension | ||||
| W | B | DΦ | dΦ | L | ||
| mm | mm | mm | mm | mm | mm | |
| FDFD 2-110（5） | 0.5*2.8 | 6.2 | 3.2 | 4.5 | 2.3 | 20 |
| FDFD 2-187（5） | 0.5*4.75 | 7.8 | 5 | 4.5 | 2.3 | 22 |
| FDFD 2-187（8） | 0.8*4.75 | 7.8 | 5 | 4.5 | 2.3 | 22 |
| FDFD 2-250 | 0.8*6.3 | 9.3 | 6.6 | 4.5 | 2.3 | 24 |
| Section of lead:4 - 6mm² (USA Spec 12 - 10 ) Imax = 24A | ||||||
| ITEMNO | NEMATAB | Dimension | ||||
| W | B | DΦ | dΦ | L | ||
| mm | mm | mm | mm | mm | mm | |
| FDFD 5.5-187（5） | 0.5*4.8 | 7.8 | 5 | 5.7 | 3.4 | 23.8 |
| FDFD 5.5-250 | 0.8*6.3 | 9.3 | 6.6 | 5.7 | 3.4 | 25.5 |
