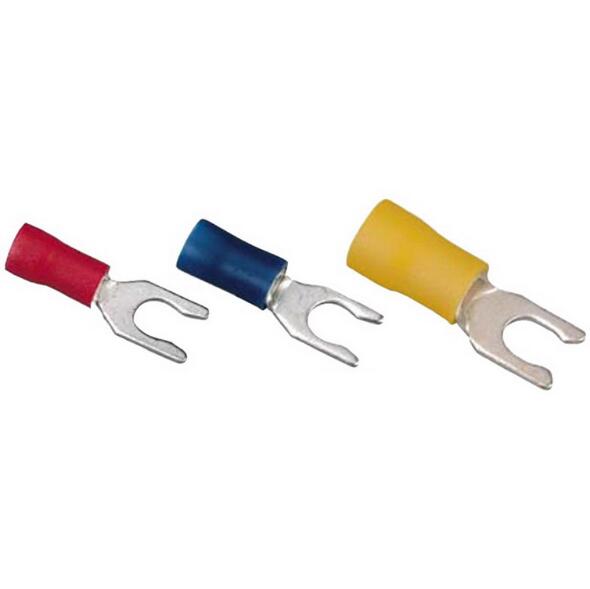

Paths : Home > Products > Terminals > Insulated Terminals > Insulated Locking Spade Terminals
| Section of lead: 0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 19A | |||||||
| ITEMNO | Dimension | ||||||

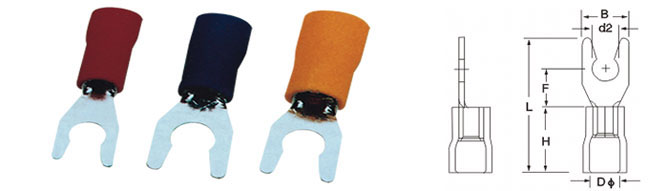

| USABOLTNO | BOLT dia. | B | L | F | H | DΦ | |
| mm | mm | mm | mm | mm | |||
| LSV 1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | 10 | 4.3 |
| LSV 1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | ||
| LSV 1.25-5 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | ||
| LSV 1.25-5 | #10 | 5.3mm | 8.1 | 27.2 | 6.5 | ||
| LSV 1.25-5 | #10 | 5.3mm | 9.5 | 27.2 | 6.5 | ||
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 27A | |||||||
| ITEMNO | Dimension | ||||||
| USABOLTNO | BOLT dia. | B | L | F | H | DΦ | |
| mm | mm | mm | mm | mm | |||
| LSV 2-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | 10 | 4.3 |
| LSV 2-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | ||
| LSV 2-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | ||
| LSV 2-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | ||
| LSV 2-6 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | ||
| Section of lead:4 - 6 mm² (USA Spec 12 - 104 ) Imax = 48A | |||||||
| ITEMNO | Dimension | ||||||
| USABOLTNO | BOLT dia. | B | L | F | H | DΦ | |
| mm | mm | mm | mm | mm | |||
| LSV 5.5-3.5 | #6 | 3.7mm | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 |
| LSV 5.5-4 | #8 | 4.3mm | 8.3 | 25.2 | 7.5 | ||
| LSV 5.5-5 | #10 | 5.3mm | 9 | 23.9 | 7.5 | ||
| LSV 5.5-6 | 1/4 | 6.5mm | 12 | 31.2 | 12 | ||
