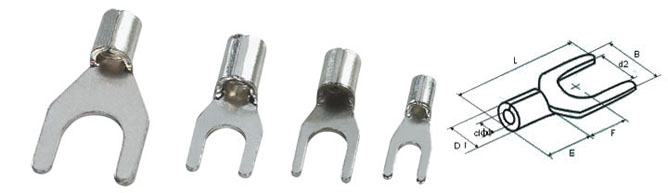

Summary Parameter

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 19A
ITEMNO	Dimension
	USABOLTNO	BOLT dia.	B	L	F	E	D Φ	dΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm	mm
SNB1.25 - 3	#4	3.2mm	5.7	16	6.5	4.8	3.4	1.7
SNBS1.25 - 3.5	#6	3.7mm	5.7	16	6.5
SNBL1.25 - 3.5	#6	3.7mm	6.4	16	6.5
SNBS1.25 - 4	#8	4.3mm	6.4	16	6.5
SNBM1.25 - 4	#8	4.3mm	7.2	16	6.5
SNBL1.25 - 4	#8	4.3mm	8.1	16	6.5
SNBS1.25 - 5	#10	5.3mm	8.1	16	6.5
SNBL1.25 - 5	#10	5.3mm	9.5	16	6.5
SNBS1.25 - 6	1/4	6.5mm	9.5	16	6.5
SNBL1.25 - 6	1/4	6.5mm	12	22	11

Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14) Imax = 27A
ITEMNO	Dimension
	USABOLTNO	BOLT dia.	B	L	F	E	D Φ	dΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm	mm
SNB2 - 3	#4	3.2mm	5.7	16	6.5	4.8	4.1	2.3
SNBS2 - 3.5	#6	3.7mm	5.7	16	6.5
SNBL2 - 3.5	#6	3.7mm	6	16	6.5
SNBS2 - 4	#8	4.3mm	6.4	16	6.5
SNBM2 - 4	#8	4.3mm	7.2	16	6.5
SNBL2 - 4	#8	4.3mm	8.1	16	6.5
SNBS2 - 5	#10	5.3mm	8.1	16	6.5
SNBL2 - 5	#10	5.3mm	9.5	16	6.5
SNBS2 - 6	1/4	6.5mm	9.5	16	6.5
SNBL2 - 6	1/4	6.5mm	12	22	11

Section of lead:2.5 - 4 mm² (USA Spec 14 - 12) Imax = 37A
ITEMNO	Dimension
	USABOLTNO	BOLT dia.	B	L	F	E	D Φ	dΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm	mm
SNB3.5 - 4	#8	4.3mm	8	18.3	7	6	5	3
SNB3.5 - 5	#10	5.3mm	8	18.3	7
SNB3.5 - 6	1/4	6.5mm	12	21.5	12.1

Section of lead:4 - 6 mm² (USA Spec12 - 10) Imax = 48A
ITEMNO	Dimension
	USABOLTNO	BOLT dia.	B	L	F	E	D Φ	dΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm	mm
SNB5.5 - 3.5	#6	3.7mm	8.3	19.5	7.5	6.8	5.6	3.4
SNB5.5 - 4	#8	4.3mm	8.3	19.5	7.5
SNB5.5 - 4	#8	4.3mm	9	19.5	7.5
SNB5.5 - 5	#10	5.3mm	9	19.5	7.5
SNB5.5 - 6	1/4	6.5mm	9	19.5	7.5
SNB5.5 - 6	1/4	6.5mm	12	25.5	12
SNB5.5 - 8	5/16	8.4mm	14	24.5	11.5
