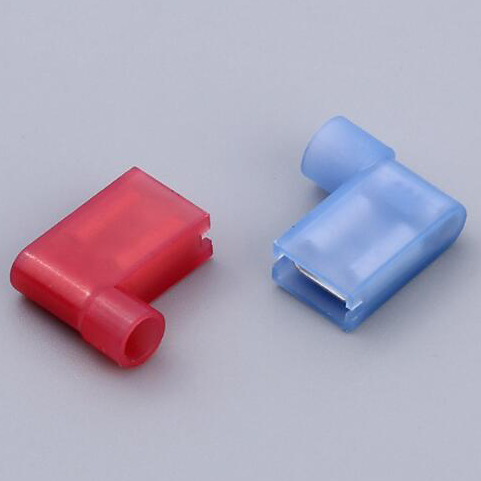

Paths : Home > Products > Terminals > Insulated Terminals > Flag Fenale Insulated Terminal
| Max current:22-18 A.W.G :10A 16-14 A.W.G :15A 12-10 A.W.G :24A | ||||||
| Max stress: 105℃ 600V Material:Copper Material of insulating bush:nylon Thickness of Material:0.4mm | ||||||

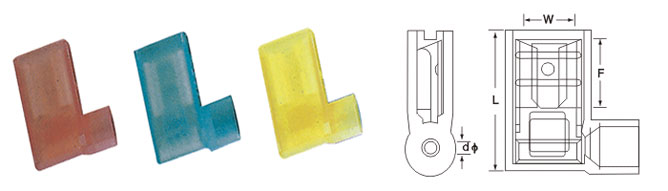

| IE | Spec | Dimension(mm) | Section of lead A.W.G | |||
| W | F | L | dΦ | |||
| FLDNY 1.25 - 250 | 0.8 x 6.35 | 6.6 | 7.6 | 16 | 1.7 | 22 - 18 A.W.G 0.5 - 1.5 mm² |
| FLDNY 2 - 250 | 0.8 x 6.35 | 6.6 | 7.6 | 16 | 1.7 | 16 - 14 A.W.G 1.5 - 2.5 mm² |
| FLDNY 5.5 - 250 | 0.8 x 6.35 | 6.6 | 7.6 | 16 | 1.7 | 12 - 10 A.W.G 4 - 6 mm² |
