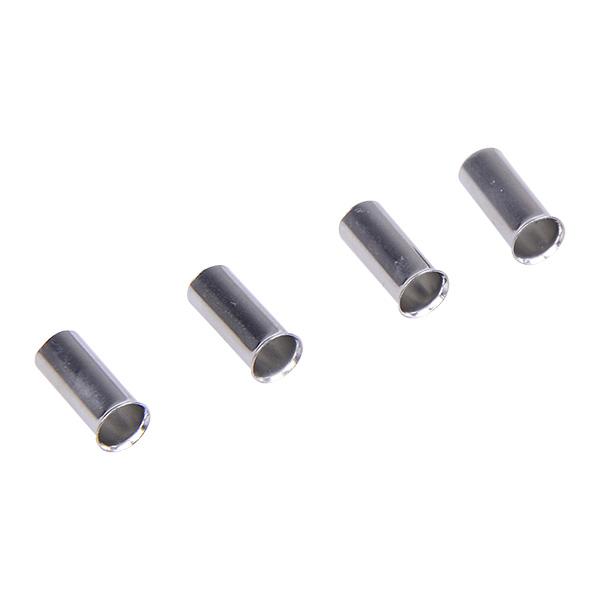

Paths : Home > Products > Terminals > Insulated Terminals > Tube Shaped Bare End Terminal
| Margin temperature：105 Ui=300V Material:Copper | ||||||

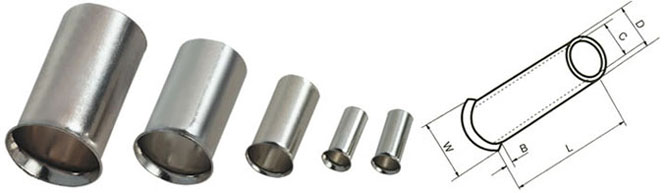

| ITEMNO | Dimension (mm) | Section of lead | ||||
| L | D | C | W | A.W.G | mm² | |
| EN0506 | 6 | 1.3 | 1 | 2.1 | #22 | 0.5 |
| EN7506 | 6 | 1.5 | 1.2 | 2.5 | #20 | 0.75 |
| EN876 | 6 | 1.7 | 1.4 | 2.7 | #18 | 1 |
| EN1010 | 10 | |||||
| EN1507 | 7 | 2 | 1.7 | 3.5 | #16 | 1.5 |
| EN1510 | 10 | |||||
| EN2507 | 7 | 2.5 | 2.2 | 2.5 | #14 | 2.5 |
| EN2512 | 12 | |||||
| EN4009 | 9 | 3.2 | 2.8 | 4 | #12 | 4 |
| EN4012 | 12 | |||||
| EN6010 | 10 | 3.9 | 3.5 | 4.8 | #10 | 6 |
| EN6012 | 12 | |||||
| EN6015 | 15 | |||||
| EN10-12 | 12 | 4.9 | 4.5 | 5.8 | #7 | 10 |
| EN10-15 | 15 | |||||
| EN10-18 | 18 | |||||
| EN16-12 | 12 | 6.2 | 5.8 | 7.5 | #5 | 16 |
| EN16-15 | 15 | |||||
| EN16-18 | 18 | |||||
| EN25-16 | 16 | 7.9 | 7.5 | 9.2 | #4 | 25 |
| EN25-22 | 22 | |||||
| EN35-16 | 16 | 8.7 | 8.3 | 10 | #2 | 35 |
| EN35-25 | 25 | |||||
| EN50-20 | 20 | 10.9 | 10.3 | 12.4 | #1 | 50 |
| EN50-25 | 25 | |||||
