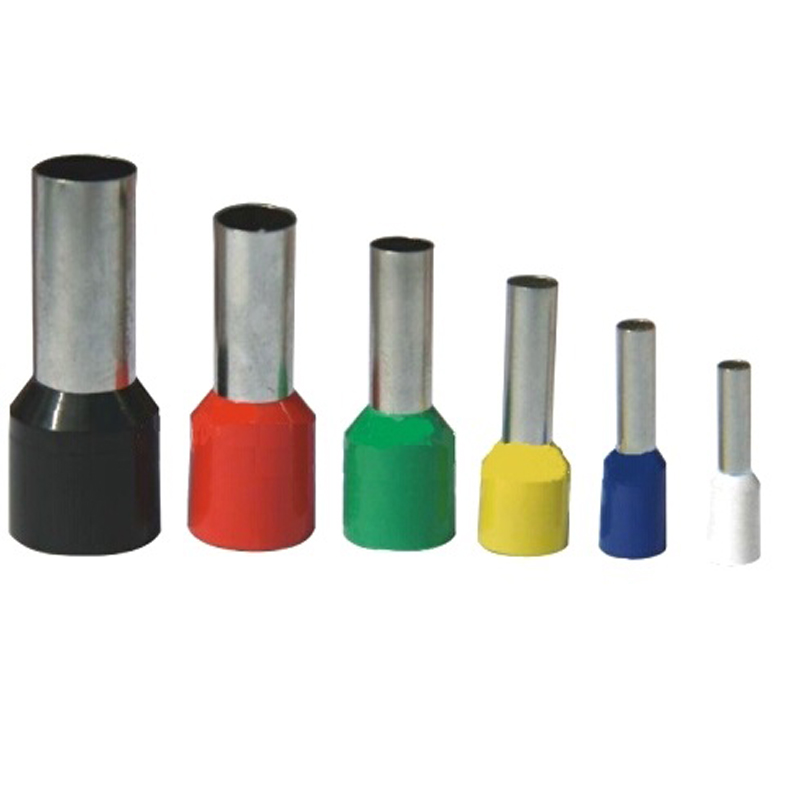

Paths : Home > Products > Terminals > Insulated Terminals > Insulated Cord End Terminals(GT-JT type)
| Margin temperature：105 Ui=300V Material:Copper | ||||||||

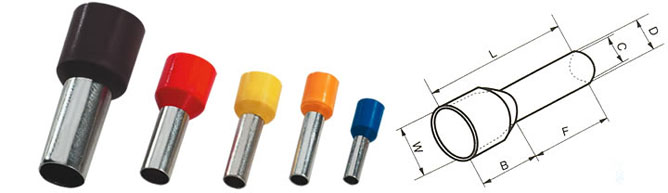

| ITEMNO | Dimension (mm) | |||||||
| F | L | W | DΦ | CΦ | A.W.G | LEAD AREA mm² | Color of Insulating bush（up）ermany（down）France | |
| E0506 | 6 | 12 | 2.6 | 1.3 | 1 | #22 | 0.5 | orange white |
| E0508 | 8 | 14 | ||||||
| E0510 | 10 | 16 | ||||||
| E7506 | 6 | 12.4 | 2.8 | 1.5 | 1.2 | #20 | 0.75 | white blue |
| E7508 | 8 | 14.6 | ||||||
| E7510 | 10 | 16.4 | ||||||
| E7512 | 12 | 18.4 | ||||||
| E876 | 6 | 12.4 | 3 | 1.7 | 1.4 | #18 | 1 | yellow red |
| E878 | 8 | 14.6 | ||||||
| E1010 | 10 | 16.4 | ||||||
| E1012 | 12 | 18.4 | ||||||
| E1508 | 8 | 14.6 | 3.5 | 2 | 1.7 | #16 | 1.5 | red black |
| E1510 | 10 | 16.4 | ||||||
| E1518 | 18 | 24.4 | ||||||
| E2508 | 8 | 15.2 | 4 | 2.6 | 2.3 | #14 | 2.5 | blue gray |
| E2512 | 12 | 19 | ||||||
| E2518 | 18 | 25 | ||||||
| E4009 | 9 | 16.5 | 4.4 | 3.2 | 2.8 | #12 | 4 | gray orange |
| E4012 | 12 | 19.5 | ||||||
| E4018 | 18 | 25.5 | ||||||
| E6012 | 12 | 20 | 6.3 | 3.9 | 3.5 | #10 | 6 | black green |
| E6018 | 18 | 26 | ||||||
| E10-12 | 12 | 21.5 | 7.6 | 4.9 | 4.5 | #7 | 10 | ivory brown |
| E10-18 | 18 | 27.5 | ||||||
| E16-12 | 12 | 22.2 | 8.8 | 6.2 | 5.8 | #5 | 16 | green ivory |
| E16-18 | 18 | 28.2 | ||||||
| E25-16 | 16 | 29 | 11.2 | 7.9 | 7.5 | #4 | 25 | brown black |
| E25-22 | 22 | 35 | ||||||
| E35-16 | 16 | 30 | 12.7 | 8.7 | 8.3 | #2 | 35 | taupe |
| E35-25 | 25 | 39 | ||||||
| E50-20 | 20 | 36 | 15.3 | 10.9 | 10.3 | #1 | 50 | olive |
| E50-25 | 25 | 41 | ||||||
