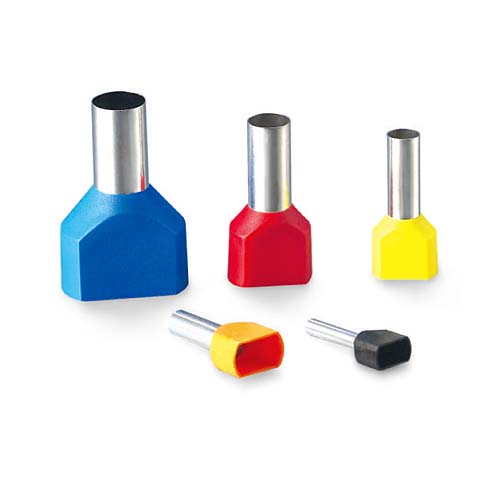

Paths : Home > Products > Terminals > Insulated Terminals > Crewel Tube Pre-Insulated Terminals
| Margin temperature：105 Ui=300V Material:Copper | |||||||||

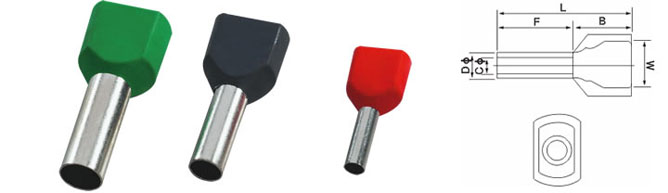

| ITEMNO | CONDUCTOR | Dimension （mm) | Color | ||||||
| F | L | W | B | DΦ | CΦ | Germany | France | ||
| TE 0508 | 2 x 0.5 | 8 | 14.5 | 8 | 6.5 | 1.8 | 1.5 | white | white |
| TE 7508 | 2 x 0.75 | 8 | 14.7 | 8 | 6.7 | 2.1 | 1.8 | blue | gray |
| TE 7510 | 2 x 0.75 | 10 | 16.7 | 10 | 6.7 | 2.1 | 1.8 | ||
| TE 1008 | 2 x 1.0 | 8 | 15.1 | 8 | 7.1 | 2.3 | 2 | red | red |
| TE 1010 | 2 x 1.0 | 10 | 17.1 | 10 | 7.1 | 2.3 | 2 | ||
| TE 1508 | 2 x 1.5 | 8 | 15.5 | 8 | 7.2 | 2.6 | 2.3 | black | yellow |
| TE 1512 | 2 x 1.5 | 12 | 19.5 | 12 | 7.5 | 2.6 | 2.3 | ||
| TE 2510 | 2 x 2.5 | 10 | 18.5 | 10 | 8.5 | 3.3 | 2.9 | gray | blue |
| TE 2513 | 2 x 2.5 | 13 | 21.5 | 13 | 8.5 | 3.3 | 2.9 | ||
| TE 4012 | 2 x 4.0 | 12 | 23.1 | 12 | 11.1 | 4.2 | 3.8 | orange | gray |
| TE 6014 | 2 x 6.0 | 14 | 26.1 | 14 | 12.1 | 5.3 | 4.9 | green | yellow |
| TE 10 - 14 | 2 x 10.0 | 14 | 26.6 | 14 | 12 | 6.9 | 6.5 | brown | red |
| TE 16 -14 | 2 x 16.0 | 14 | 31.3 | 8.9 | 17.3 | 8.7 | 8.3 | ivory | blue |
