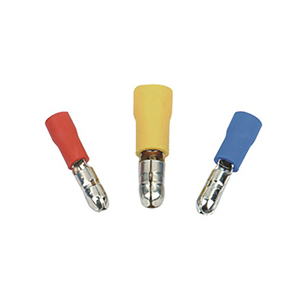

Paths : Home > Products > Terminals > Insulated Terminals > Insulated Male Bullet Disconnector

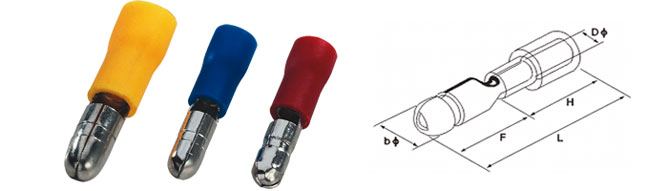

| Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A Material:Copper | |||||||
| ITEMNO | Thickness | Dimension (mm) | Color | ||||
| bΦ | F | DΦ | H | L | |||
| MPD 1.25 - 156 | 0.4 | 4 | 11 | 1.7 | 10 | 21 | red |
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A Material:Copper | |||||||
| ITEMNO | Thickness | Dimension (mm) | Color | ||||
| bΦ | F | DΦ | H | L | |||
| MPD 2 - 156 | 0.4 | 4 | 11 | 2.3 | 10 | 21 | blue |
| MPD 2 - 195 | 0.4 | 5 | 11 | 2.3 | 10 | 21 | |
| Section of lead:4 - 6 mm² (USA Spec 12 - 10 ) Imax = 24A Material:Copper | |||||||
| ITEMNO | Thickness | Dimension (mm) | Color | ||||
| bΦ | F | DΦ | H | L | |||
| MPD 5.5 - 195 | 0.4 | 5 | 12 | 3.4 | 13 | 25 | yellow |
