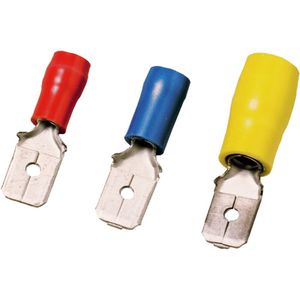

Paths : Home > Products > Terminals > Insulated Terminals > Insulated Male Disconnects Terminal
| Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A | ||||||||
| ITEMNO | NEMATAB | Thickness | Dimension | |||||
| B | dΦ | DΦ | L | H | B | |||
| mm | mm | mm | mm | mm | mm | mm | mm | |
| MDD 1.25-110（5） | 0.5*2.8 | 0.5 | 2.8 | 1.7 | 4.3 | 17.7 | MDD 1.25-110（5） | 10 |
| MDD 1.25-110（8） | 0.8*2.8 | 0.8 | 2.8 | 1.7 | 4.3 | 17.7 | MDD 1.25-110（8） | |
| MDD 1.25-187（5） | 0.5*4.75 | 0.5 | 4.75 | 1.7 | 4.3 | 18.5 | MDD 1.25-187（5） | |
| MDD 1.25-187(8) | 0.8*4.75 | 0.8 | 4.75 | 1.7 | 4.3 | 18.5 | MDD 1.25-187(8) | |
| MDD 1.25-250 | 0.8*6.3 | 0.4 | 6.3 | 1.7 | 4.3 | 21 | MDD 1.25-250 | |
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A | |||||||
| ITEMNO | NEMATAB | Thickness | Dimension | ||||
| B | dΦ | DΦ | L | H | |||
| mm | mm | mm | mm | mm | mm | mm | |
| MDD 2-110（5） | 0.5*2.8 | 0.5 | 2.8 | 2.3 | 4.3 | 17.7 | 10 |
| MDD 2-187（5） | 0.5*4.75 | 0.5 | 4.75 | 2.3 | 4.3 | 18.5 | |
| MDD 2-187(8) | 0.8*4.75 | 0.8 | 4.75 | 2.3 | 4.3 | 18.5 | |
| MDD 2-250 | 0.8*6.3 | 0.4 | 6.35 | 2.3 | 4.3 | 21 | |
| Section of lead:4 - 6 mm² (USA Spec 12 - 10 ) Imax = 24A | |||||||
| ITEMNO | NEMATAB | Thickness | Dimension | ||||
| B | dΦ | DΦ | L | H | |||
| mm | mm | mm | mm | mm | mm | mm | |
| MDD 5.5-187 | 0.5*4.75 | 0.5 | 4.75 | 3.4 | 5.7 | 23 | 14 |
| MDD 5.5-250 | 0.8*6.3 | 0.4 | 6.3 | 3.4 | 5.7 | 25 | |
